Mounting rack designed for BESS containers
Features
1.High-Strength & Lightweight Design
Replaces traditional concrete foundations with robust H-shaped steel, offering superior durability while reducing weight and material waste.
2.Rapid Modular Installation
Prefabricated modular components enable quick assembly, cutting deployment time and adapting to complex terrains
3.Extreme Environment Adaptability
Engineered for harsh conditions (high humidity, temperature fluctuations, corrosive soils) without compromising structural integrity.
4.Eco-Friendly & Sustainable
Eliminates carbon-intensive concrete use, aligns with green energy goals, and supports recyclable material practices.
Specification
| Material | Q355B/S355JR |
| Surface treatment | Zinc coating≥85μm |
| Loading capacity | ≥40Tons |
| Installation | Bolts are used to fasten components securely without additional cement construction. |
| Features: | Quick construction High cost-effectiveness Environmental friendliness |

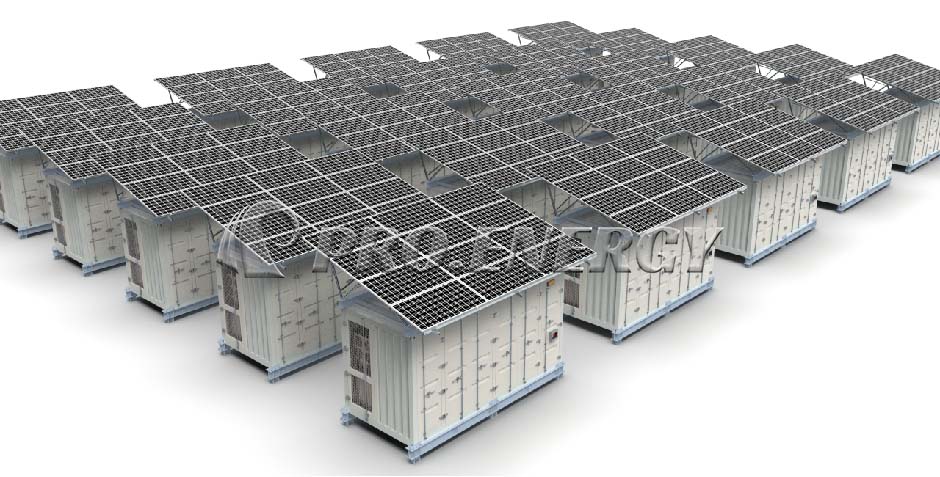

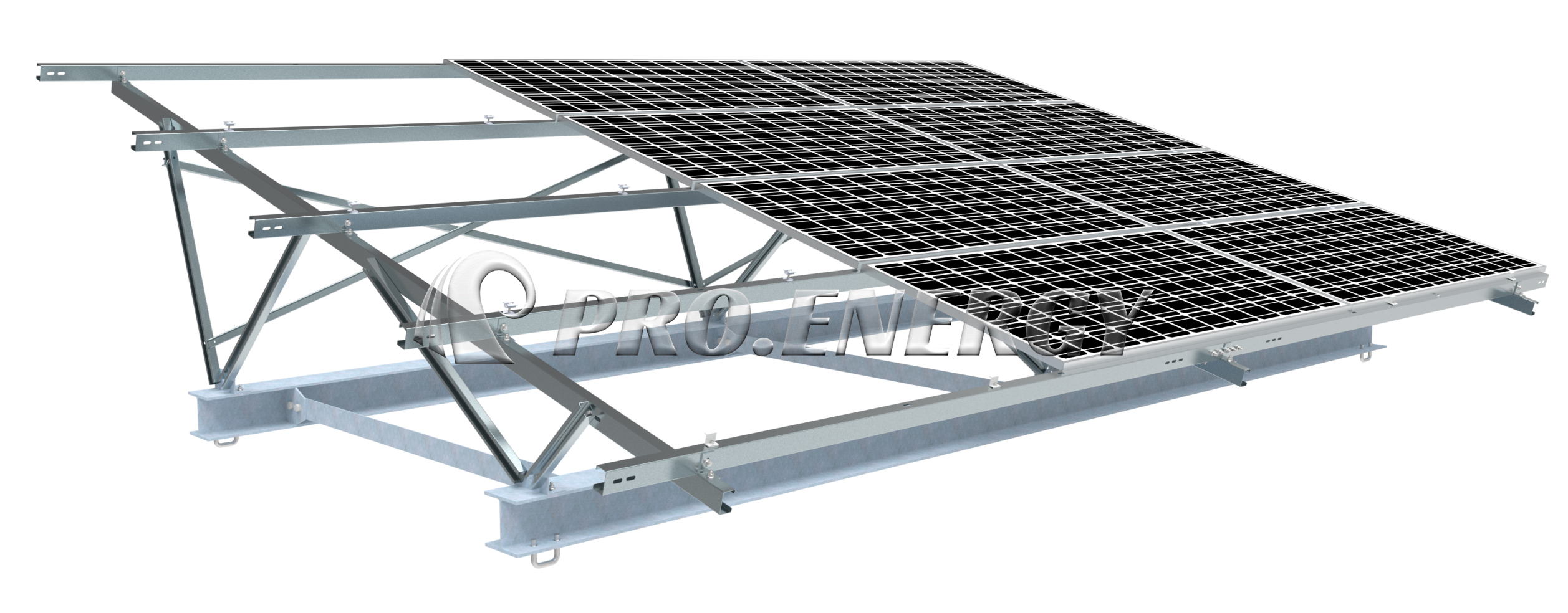

Top solar mounting system for BESS container
The top PV bracket is suitable for mainstream solar panels, and the PV module is also used as a sunshade to reduce the direct sunlight on the top of the container. Combined with the ventilation and heat dissipation at the bottom, it can comprehensively reduce the temperature in the container and prolong the service life of the energy storage equipment.
